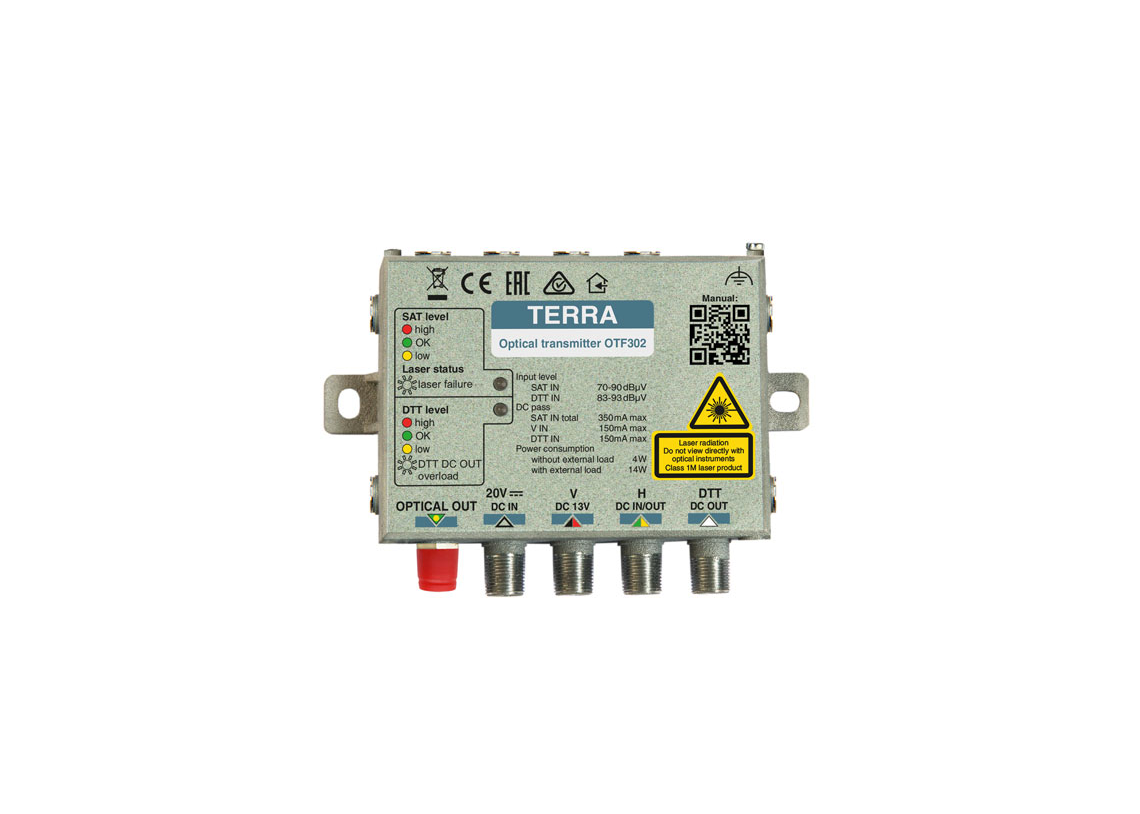

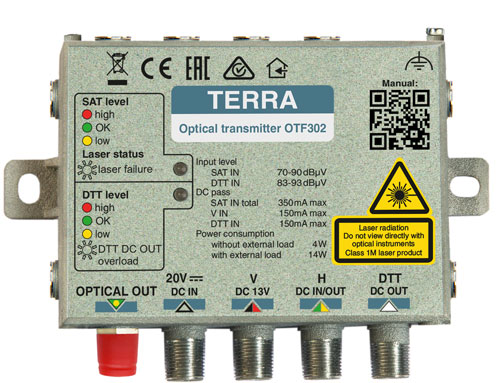

OTF302 6F55 E
Optical transmitter, 6 dBm,
1550 nm, FP
1550 nm, FP
Input 87.5-240 MHz...470-790 MHz and 2x(290-2350) MHz, FC/UPC
Remote access using PC102W programmer
|
Ordering number 14859 |
Specifications
|
T Y P E |
OTF302 6F55 E | ||||
|
Wideband inputs |
|||||
|
Frequency range |
2 x (290-2350 MHz) |
||||
|
RF input level (AGC range) for 60 transponders |
70-90 dBµV (per carrier) |
||||
|
LNB remote feeding |
13 V via V input - 150 mA max., 20 V via H input, 350 mA max. total |
||||
|
DTT input |
|||||
|
System frequency range** |
87.5-240 / 470-790 MHz |
||||
|
RF input level*** |
83 dBµV / 83-93 dBµV (per carrier) |
||||
|
Remote feeding |
19 V 150 mA max. |
||||
|
Optical output |
|||||
|
Power |
6 dBm |
||||
|
Laser |
FP |
||||
|
Wavelenght |
1550 nm |
||||
|
Connector |
FC/UPC |
||||
|
General |
|||||
|
Input return loss / impedance |
> 12 dB / 75 Ω |
||||
|
Supply voltage |
20 V |
||||
|
Power consumption**** |
4 W max. |
||||
|
Operating temperature range |
-20°C ÷ + 40°C |
||||
|
Dimensions/Weight (packed) |
116x84x25.5 mm/0.28 kg |
||||
** the set with MCA101x
*** FM level the same like DTT, DAB level 12 dB below
**** without remote feeding

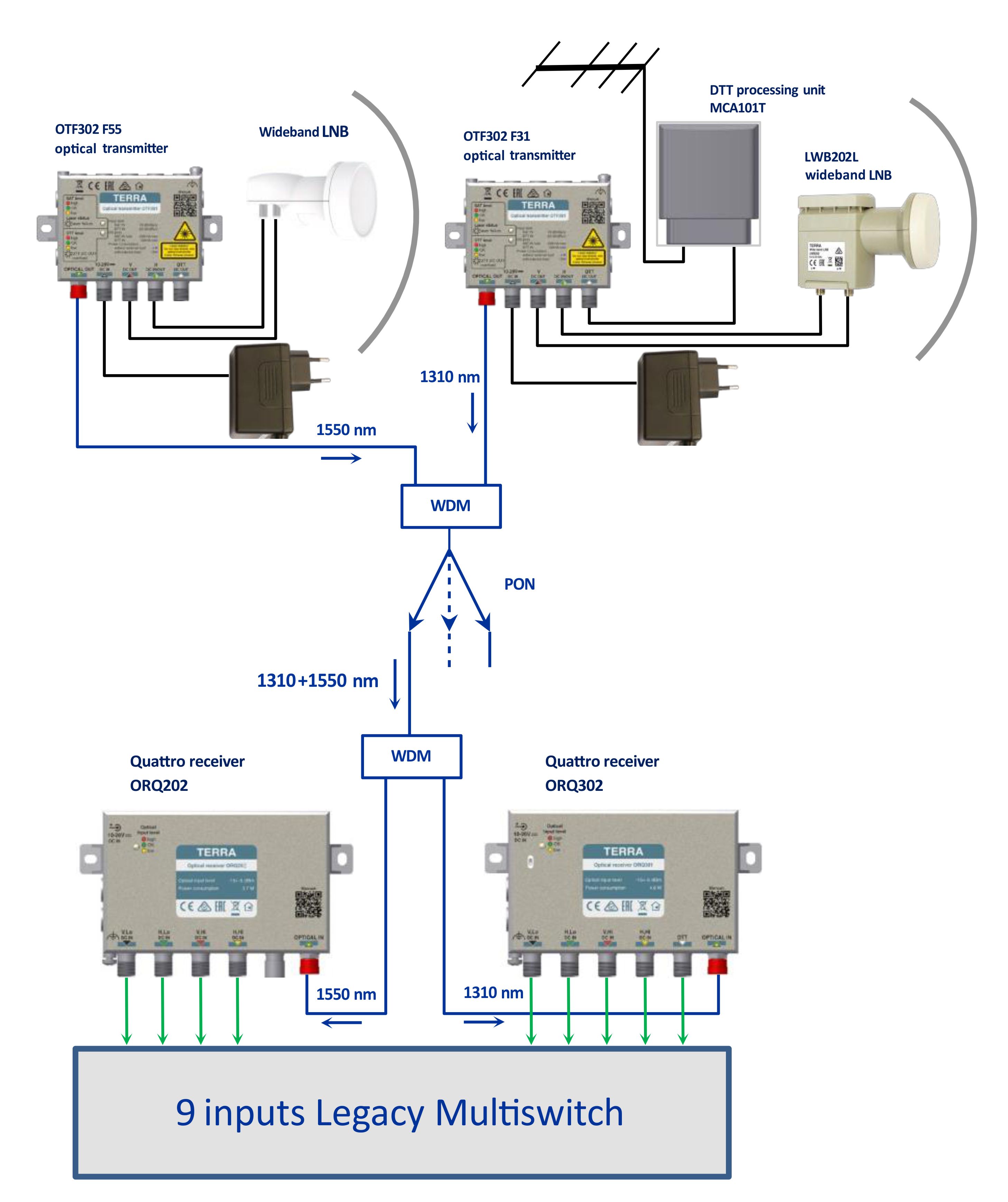

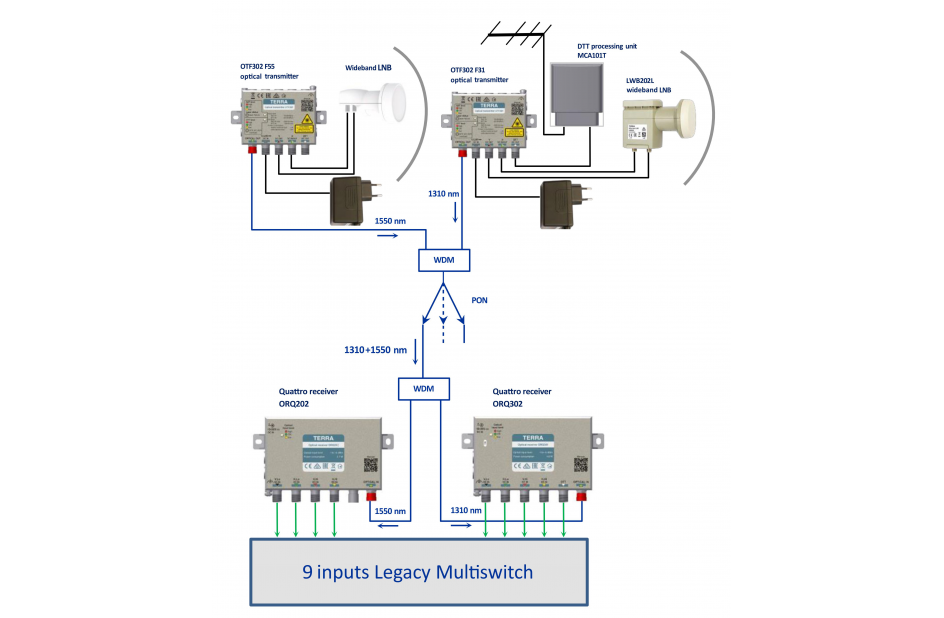

Application example
