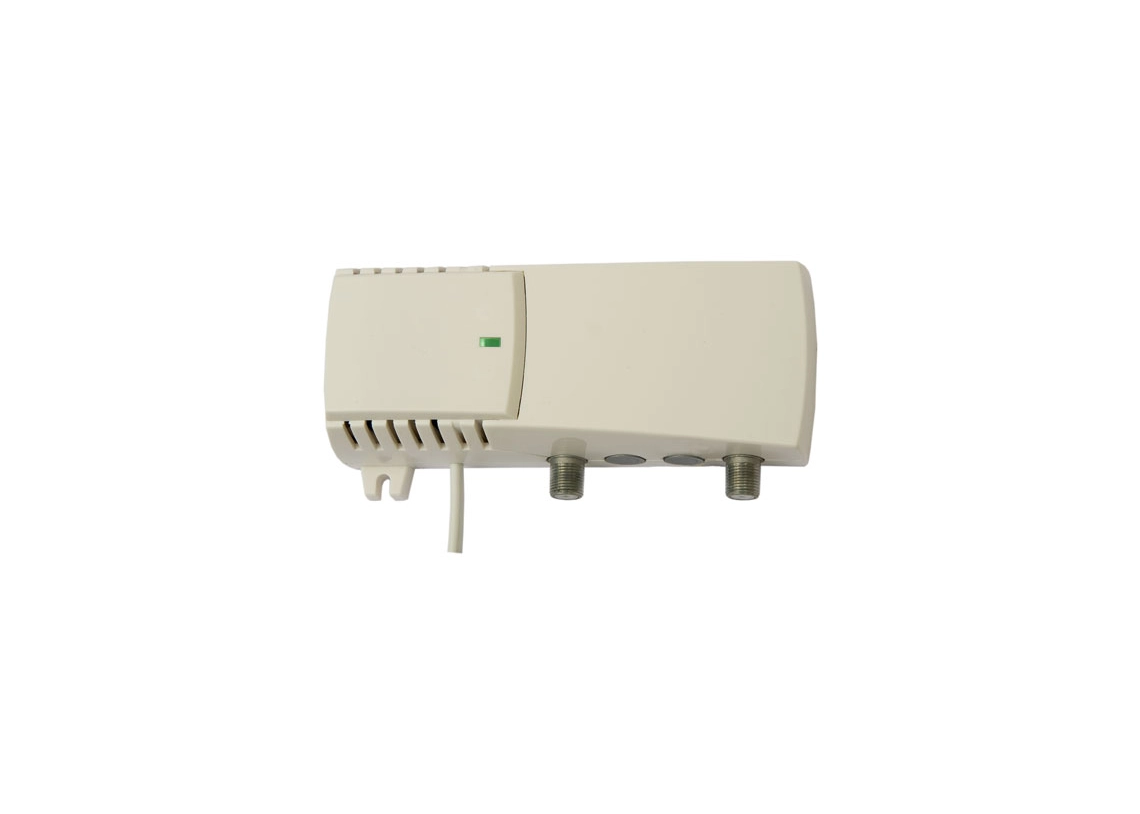

HSA001R3
Splitband amplifier, with passive 30 MHz return path
up to 2400 MHz, gain 25 dB, level DIN 110 dBµV
|
Ordering number 01787 |
Specifications
|
T Y P E |
HSA001R3 |
||||
|
Ordering number |
01787 |
||||
|
Forward path |
|||||
|
Frequency range |
SAT IF |
950-2400 MHz |
|||
|
Terr. TV |
47-862 MHz |
||||
|
Gain |
SAT IF |
18-25 dB (pre-correction) |
|||
|
Terr. TV |
14-18 dB (pre-correction) |
||||
|
Gain adjustment |
SAT IF |
10 dB |
|||
|
Terr. TV |
15 dB |
||||
|
Input and output return loss |
SAT IF |
≥ 10 up to 1750 MHz, 1750-2400 MHz linear decrease from 10 dB up to 7 dB |
|||
|
Terr. TV |
≥ 10 dB |
||||
|
Maximal output level |
SAT IF |
115 dBµV (2 egual carriers) |
|||
|
Maximal output level |
Terr. TV |
110 dBµV |
|||
|
DC pass |
400 mA max. |
||||
|
Return path |
|||||
|
Frequency range |
5 - 30 MHz |
||||
|
Loss |
4 dB |
||||
|
Return loss |
> 14 dB |
||||
|
General |
|||||
|
Mains power consumption |
230 V~ 50/60 Hz 4 W |
||||
|
Temperature range |
-20° ÷ +50°C |
||||
|
Dimensions |
133x73x39 mm/0.36 kg |
||||
