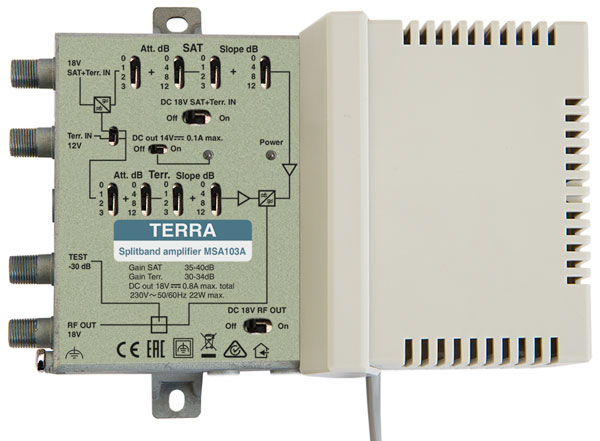

MSA103A
Launch splitband amplifier, switchable two/one inputs
up to 2400 MHz, gain 40 dB, level IMD3 120 dBµV
|
Ordering number 03720 |
Specifications
|
T Y P E |
MSA103A |
||||
|
Ordering number |
03720 |
||||
|
Frequency range |
Terr. TV |
47-790 MHz |
|||
|
SAT IF |
950-2400 MHz |
||||
|
Gain (fixed slopepre-correction) |
Terr. TV |
30-34 dB |
|||
|
SAT IF |
35-40 dB |
||||
|
Gain adjustment |
SAT IF |
15 dB by 1 dB step |
|||
|
Terr. TV |
15 dB by 1 dB step |
||||
|
Slope adjustment |
Terr. TV |
15 dB by 1 dB step |
|||
|
SAT IF |
15 dB by 1 dB step |
||||
|
Input and output return loss |
≥ 12 dB |
||||
|
Output level |
Terr. TV |
115 dBµV IMD3=60 dB, 2 equal carriers |
|||
|
SAT IF |
120 dBµV IMD3=35 dB, 2 equal carriers |
||||
|
Noise figure |
Terr. TV |
7 dB |
|||
|
SAT IF |
8 dB |
||||
|
Output test point |
-30 dB |
||||
|
DC feeding for external, switchable |
Terr. TV |
12 V 100 mA, max. |
|||
|
SAT IF |
18 V 0.8 A, max. |
||||
|
Power consumption* |
230 V~ 50/60 Hz 3.5 W |
||||
|
Operating temperature range |
-20°÷+50°C |
||||
|
Dimensions/Weight (packed) |
180x135x52 mm/0.62 kg |
||||
* without external DC feeding, with external DC feeding 22 W
