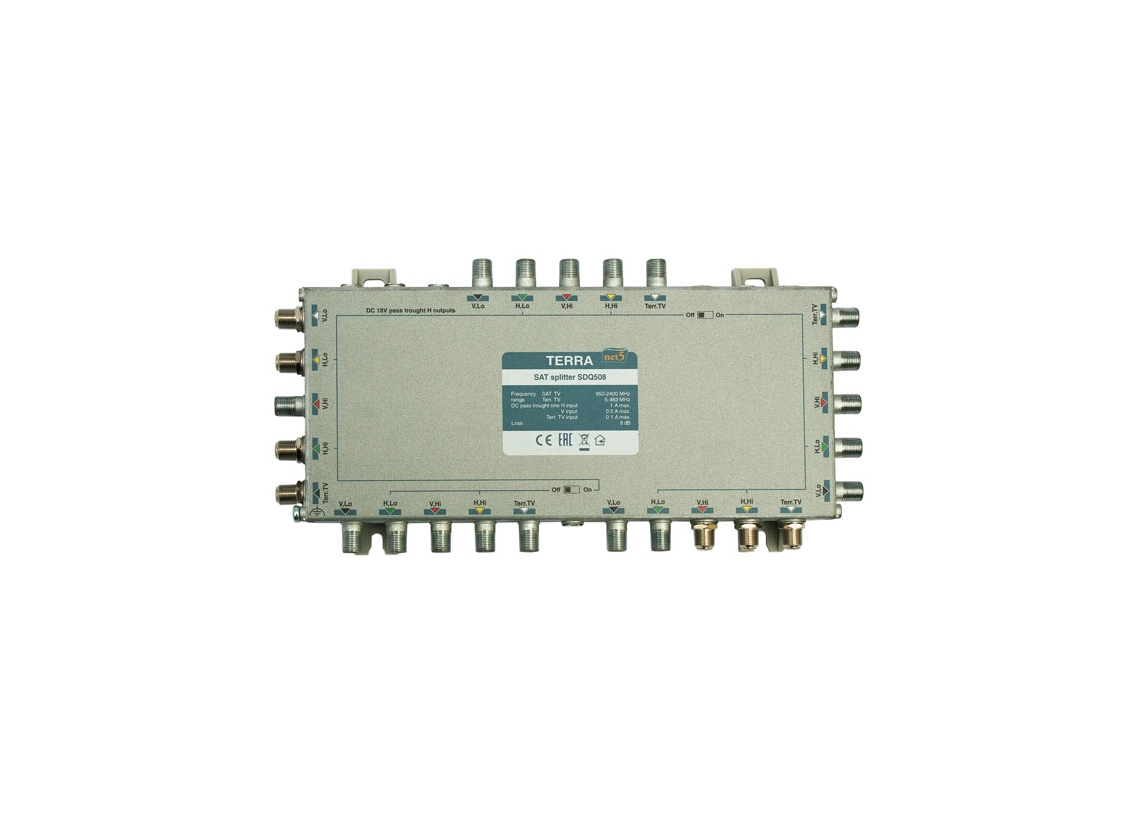

SDQ508
Splitter 8 dB
5 inputs
|
Ordering number 02719 |
Specifications
|
T Y P E |
SDQ508 |
||||
|
Ordering number |
02719 |
||||
|
Frequency range |
SAT IF |
950-2400 MHz |
|||
|
Terr. TV |
5-862 MHz |
||||
|
Through loss |
SAT IF |
8 dB |
|||
|
Terr. TV |
8 dB |
||||
| SAT inputs decoupling |
SAT IF |
30 dB |
|||
|
Terr. TV |
30 dB |
||||
|
DC pass through |
H lines |
2 A max. (1 A max. through one line) |
|||
|
Terr.TV lines |
0.1 A max. |
||||
|
Return loss |
> 10 dB |
||||
|
Operating temperature range |
-20° ÷ + 50°C |
||||
|
Dimensions/Weight (packed) |
267x135x30 mm/0.7 kg |
||||
