T Y P E

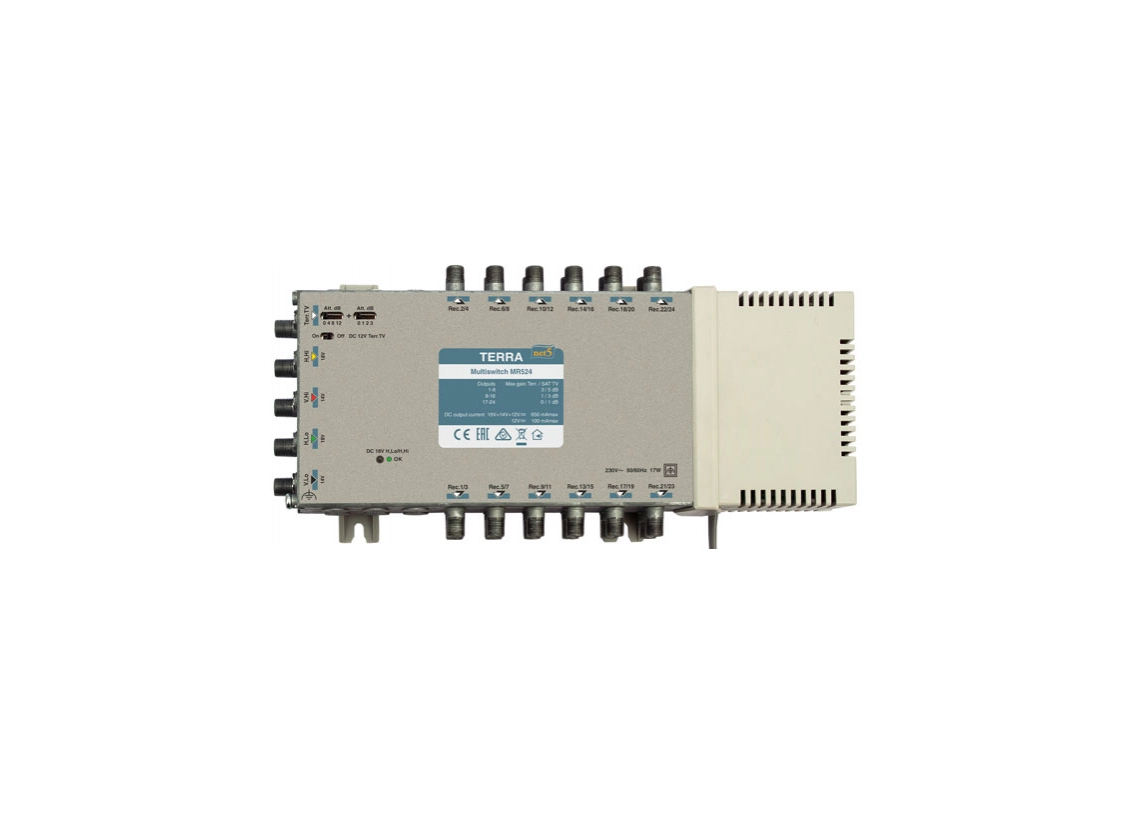

MR524

Ordering number

02728

Number of outputs

24

Frequency range

SAT IF

950-2400 MHz

Terr. TV

47-862 MHz

Gain
(fixed slope
pre-correction)

SAT IF

outputs 1-8

-3 ÷ 5 dB

outputs 9-16

-4 ÷ 3 dB

outputs 17-24

-5 ÷ 1 dB

Terr. TV

outputs 1-8

-2 ÷ 3 dB

outputs 9-16

-4 ÷ 1 dB

outputs 17-24

-5 ÷ 0 dB

Gain adjustment Terr. TV

15 dB by 1 dB step

Noise figure Terr.TV

≤ 7 dB

Output level for SAT IF (IMD3=35 dB)*

96 dBµV

Output level for Terr. TV
(IMD3=60 dB)*

outputs 1-8

86 dBµV

outputs 9-16

84 dBµV

outputs 17-24

82 dBµV

SAT inputs decoupling

≥ 30 dB

Outputs decoupling

SAT IF

≥ 30 dB

Terr. TV

≥ 35 dB

Rejection

Terr. TV/SAT

≥ 30 dB

SAT/Terr. TV

≥ 40 dB

Supply voltage through RF inputs

H,Lo and H,Hi - 18 V; V,Lo and V,Hi - 14 V; Terr. TV - 12 V

DC supply current
through RF inputs

+18V &+14V &+12V

< 0.65 A

+14V &+12V

< 0.5 A

+12V

≤ 100 mA

Current consumption from receiver

< 65 mA

Control signals

14/18 V, 0/22 kHz

Power consumption**

230 V~  50/60 Hz  3 W

Operating temperature range

-20°÷+ 50°C

Dimensions/Weight (packed)

293x135x52 mm/1.7 kg
