T Y P E

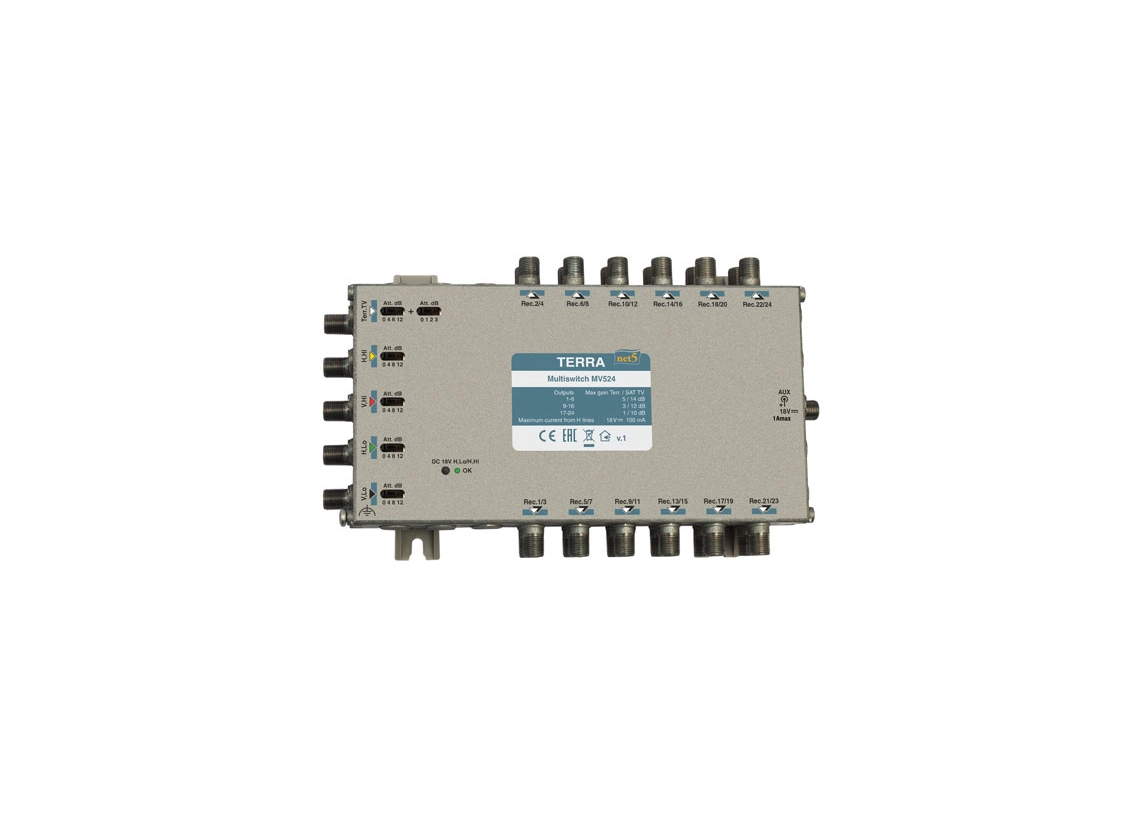

MV524

Ordering number

02723V1

Number of outputs

24

Frequency range

SAT IF

950-2400 MHz

Terr. TV

47-862 MHz

Gain
(fixed slope
pre-correction)

SAT IF

outputs 1-8

5 ÷ 14 dB

outputs 9-16

4 ÷ 12 dB

outputs 17-24

3÷10 dB

Terr. TV

outputs 1-8

-1÷5 dB

outputs 9-16

-2÷3 dB

outputs 17-24

-3÷1 dB

Gain adjustment

SAT IF

12 dB by 4 dB step

Terr. TV

15 dB by 1 dB step

Output level for SAT IF (IMD3=35 dB)*

105 dBµV

Output level for Terr. TV
(IMD3=60 dB)*

outputs 1-8

86 dBµV

outputs 9-16

84 dBµV

outputs 17-24

82 dBµV

≥ 30 dB

Outputs decoupling

SAT IF

≥ 27 dB

Terr. TV

≥ 35 dB

Rejection

Terr. TV/SAT

≥ 30 dB

SAT/Terr. TV

≥ 40 dB

Current consumption from receiver

< 65 mA

Current consumption from inputs H lines
or from external power supply

+18 V  100 mA

Control signals

14/18 V, 0/22 kHz

Operating temperature range

-20° ÷ + 50°C

Dimensions/Weight (packed)

227x135x50 mm/1.5 kg
