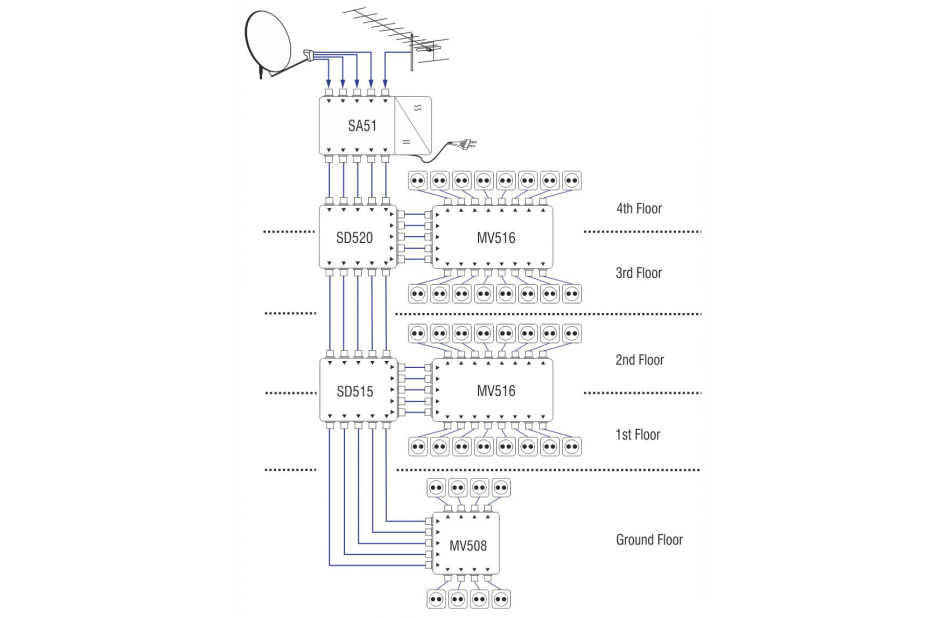

SA51
|
Ordering number 02730 |
|
T Y P E |
SA51 |
||||
|
Ordering number |
02730 |
||||
|
Frequency range |
SAT IF |
950-2400 MHz |
|||
|
Terr. TV |
47-862 MHz |
||||
|
Gain |
SAT IF, adjustable |
22 dB (0 ÷-15 dB) by 1 dB step |
|||
|
Terr. TV, adjustable |
22 dB (0 ÷-15 dB) by 1 dB step |
||||
|
Slope |
SAT IF, switchable |
0/3/5/7 dB |
|||
|
Terr. TV, switchable |
0/6/12/18 dB |
||||
|
Isolation |
SAT/SAT |
30 dB |
|||
|
SAT/Terr. TV |
30 dB |
||||
|
Noise figure, typical |
≤ 9 dB |
||||
|
Output level IMD3=60 dB Terr. TV**** |
109 dBµV |
||||
|
Output level IMD3=35 dB SAT IF**** |
114 dBµV |
||||
|
External equipment |
through V lines |
14 V 0.5 A max. (switchable) |
|||
|
through H lines |
18 V 2 A* max. (switchable) |
||||
|
through Terr line |
12 V 0.1 A max. (switchable) |
||||
|
DC pass through, switchable through H lines |
2 A* max. |
||||
|
Power consumption |
230 V~ 50/60 Hz 5 W** |
||||
|
Operating temperature range |
-20° ÷ + 50°C |
||||
|
Dimensions/Weight (packed) |
284x135x52 mm/1.0 kg |
||||
* 1 A max. through one line
** without external DC loading; with maximal external DC load - 55 W
*** in line powering of SA51D through H lines
**** measured using 2 equal signals
