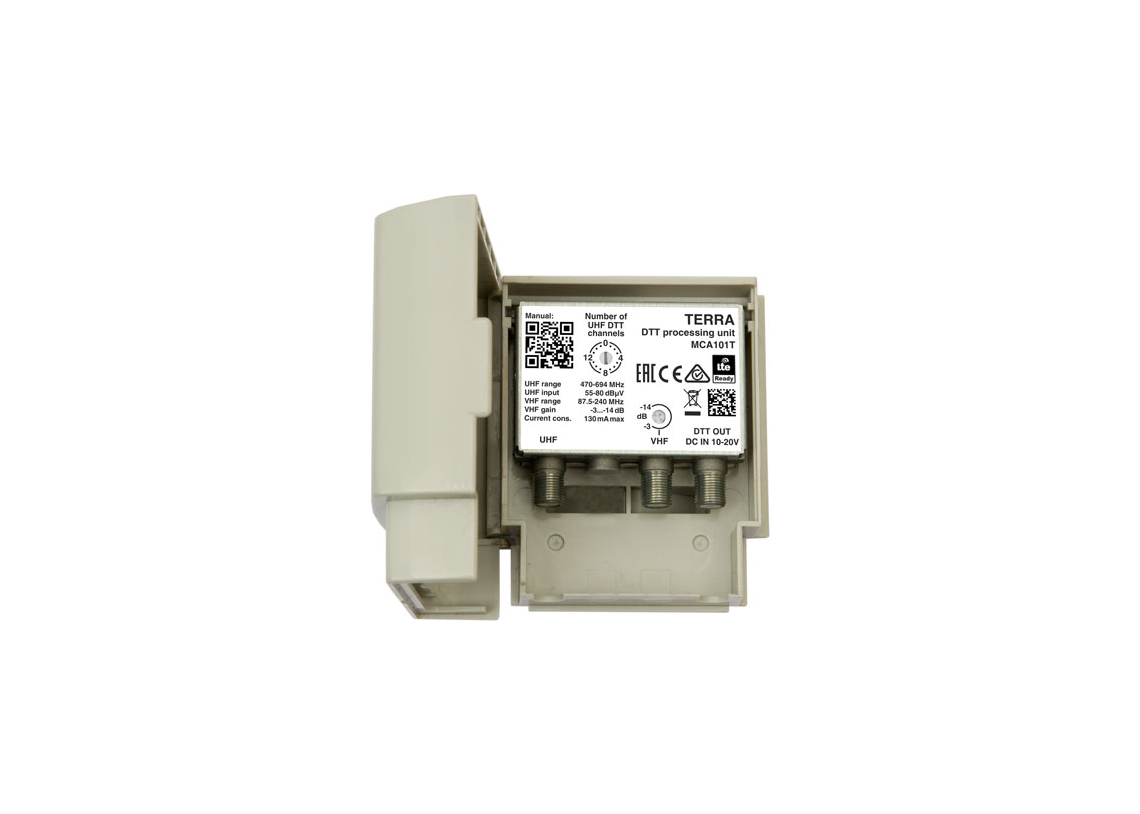

MCA101T
DTT processing unit is designed to work with OTF30x transmitters
Input 87.5-240 MHz...470-694 MHz
|
Ordering number 14827 |
Specifications
|
T Y P E |
MCA101T |
||||
|
Ordering number |
14827 |
||||
|
RF inputs |
|||||
|
VHF gain / input level |
87.5-240 MHz |
-3...-14 dB adjustable, passive / |
|||
|
UHF input level |
470-694 MHz |
55-80 dBµV** |
|||
|
Number of inputs |
2 |
||||
|
UHF noise figure |
< 5 dB |
||||
|
UHF AGC range |
25 dB |
||||
|
RF output |
|||||
|
Output level UHF, AGC range |
93 dBµV |
||||
|
General |
|||||
|
Return loss / impedance |
> 10 dB / 75 Ω |
||||
|
Supply voltage |
10 - 20 V |
||||
|
Current consumption |
130 mA max. |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
89x107x43 mm/0.18 kg |
||||
* according requirements of OTF302 terrestrial input
** AGC range
