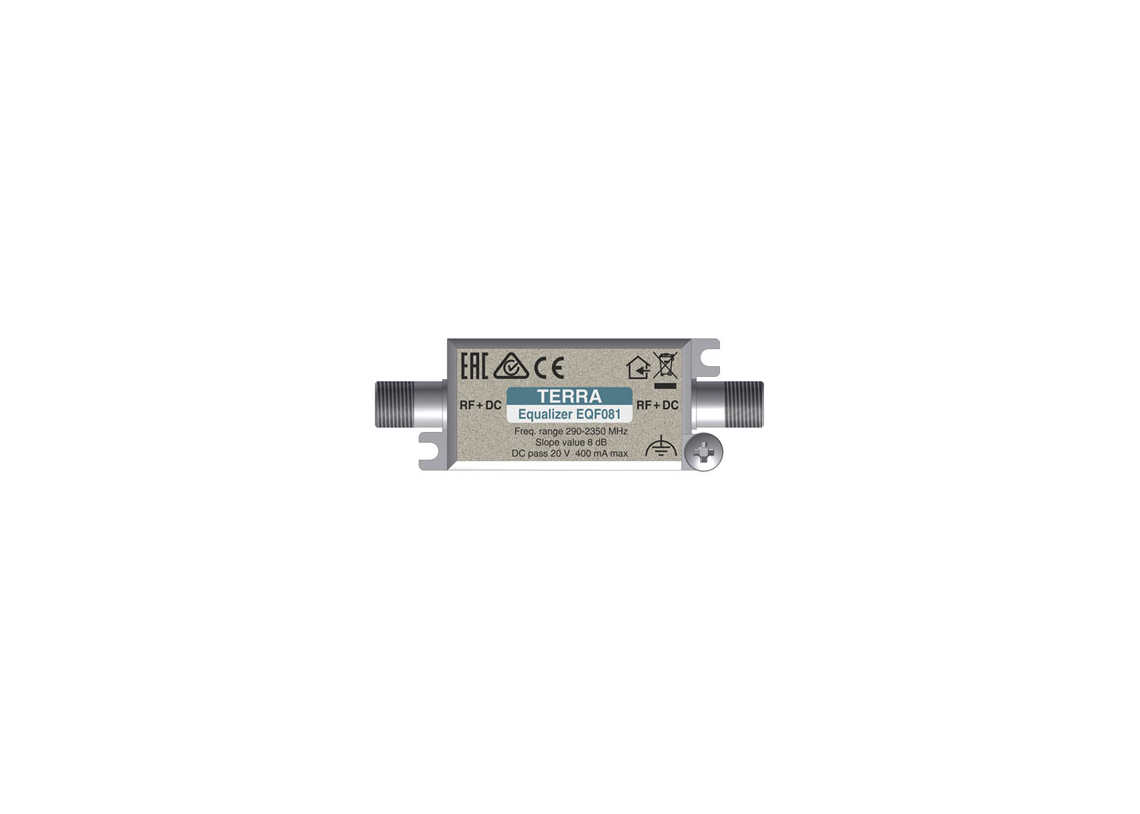

EQF081
Compensates slope of 30 m of
RG-6 coaxial cable
RG-6 coaxial cable
|
Ordering number 14866 |
Specifications
|
T Y P E |
EQF081 |
||||
|
Frequency range |
290-2350 MHz |
||||
|
Slope value |
8 dB |
||||
|
Return loss / impedance |
> 12 dB / 75 Ω |
||||
|
Insertion loss |
290 MHz |
10.7 dB |
|||
|
950 MHz |
5.5 dB |
||||
|
2150 MHz |
1.6 dB |
||||
|
2350 MHz |
1.3 dB |
||||
|
DC pass |
20 V 400 mA max. |
||||
|
Dimensions/Weight (packed) |
80x27x19 mm / 0.085 kg |
||||
Application example
An example of using the line equalizer to increase the lenght of coaxial cable between LNB and optical transmitter
