T Y P E

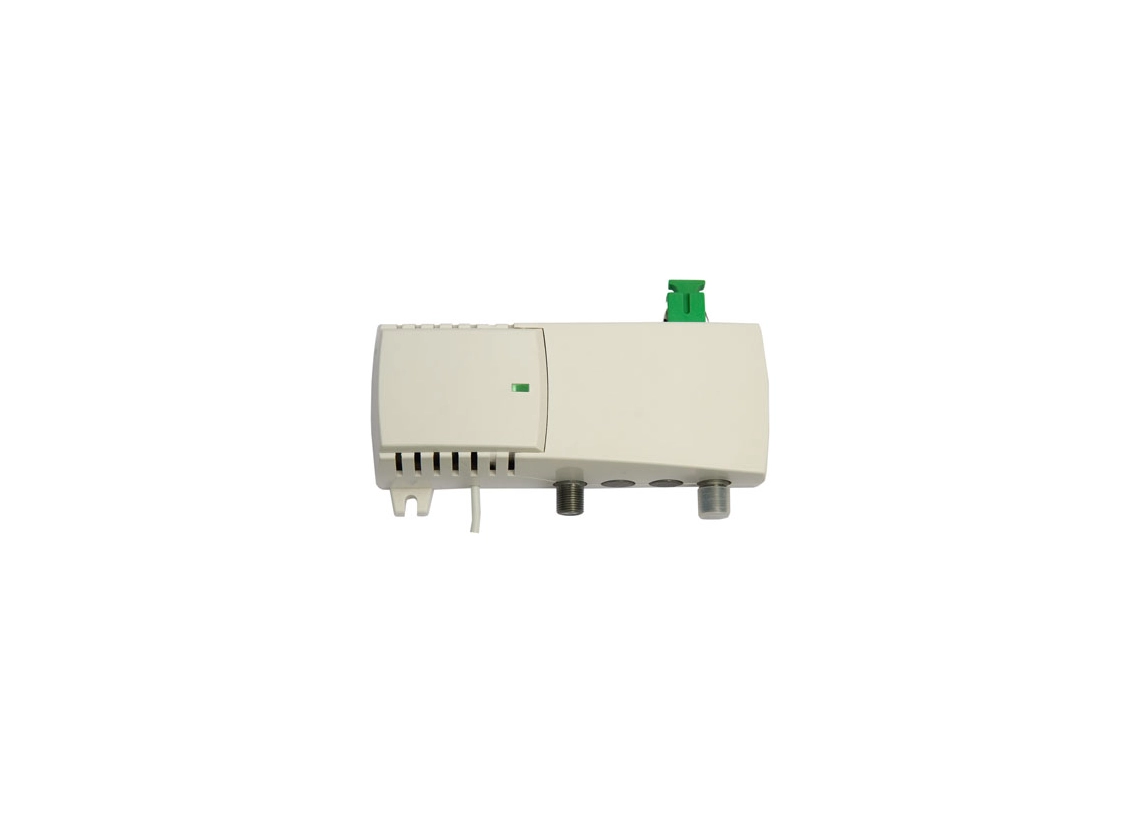

OD004A

Ordering number

02847

Optical
input

wavelenght

1100-1600 nm

input level (AGC range), switchable

-15÷-6 /-8÷0 dBm

return loss

> 40 dB

noise current density

≤ 7.0 pA/√Hz

RF output

frequency range

47-2400 MHz

impedance

75 Ω

return loss

≥ 14 dB at 40 MHz -1.5 dB/oct (47-950 MHz);
≥ 10 dB up to 1750 MHz; ≥ 7 dB up to 2400 MHz

frequency response

± 1.5 dB (47-2150 MHz)

gain adjustment (manual control mode)

31 dB by 1 dB step

Output level* (AGC range),
optical input level

-8 ÷ 0 dBm

78 dBµV

-15 ÷ -6 dBm

80 dBµV

Output level* CTB (EN60728-3)

90 dBµV

Output level* CSO (EN60728-3)

83 dBµV

Max. output level IMD3=60 dB, 2 carries,
2150 MHz, +f=10 MHz

104 dBµV

Power consumption

230 V~  50/60 Hz  4 W or DC 10 V-20 V  2 W

Operating temperature range

-20°C ÷ +50°C

Dimensions/Weight (packed)

133x73x39 mm/0.36 kg
