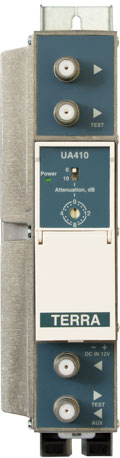

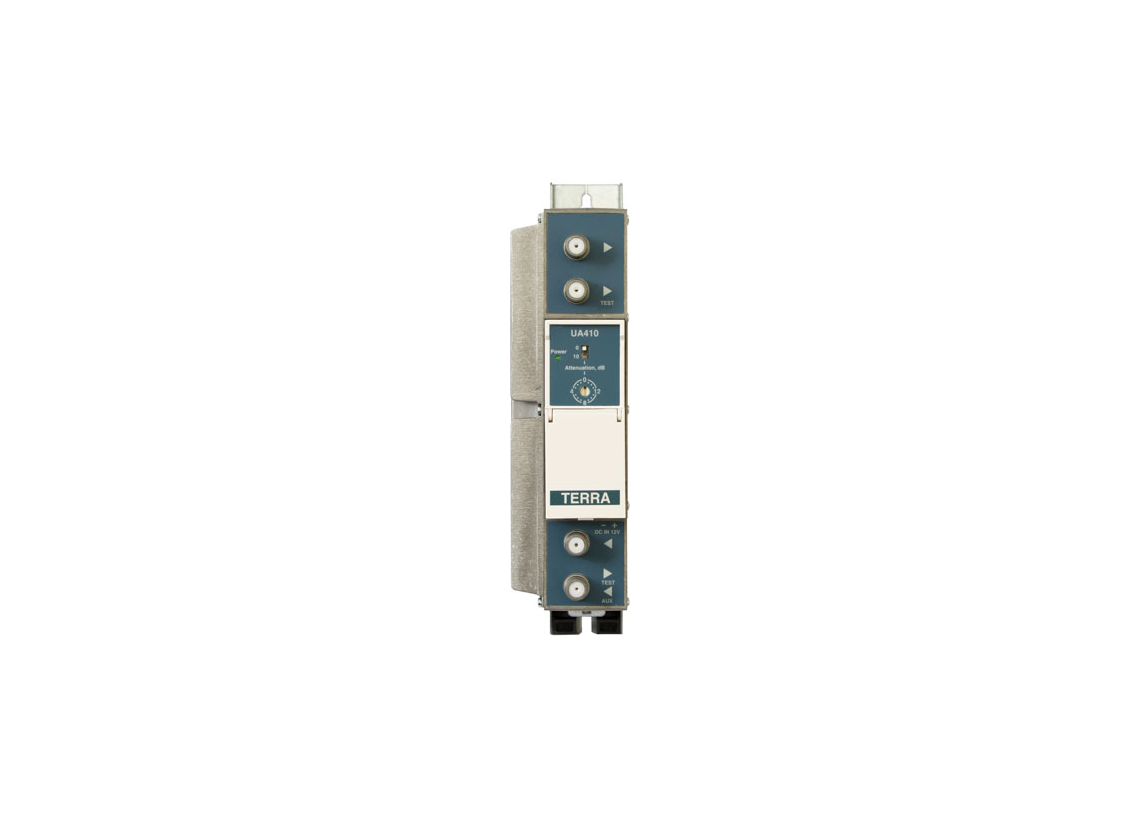

UA410
Output amplifier
two selectable input modes:
input + input test point or two inputs
input + input test point or two inputs
|
Ordering number 02566 |
Specifications
|
T Y P E |
UA410 |
||||
|
Ordering number |
02566 |
||||
|
Frequency range |
47-862 MHz |
||||
|
Gain, switchable |
30/40 dB |
||||
|
Output level CTB (- 60 dB, EN60728-3) |
110 dBµV |
||||
|
Output level CSO (- 60 dB, EN60728-3) |
111 dBµV |
||||
|
Noise figure (2 inputs / input and test point) |
11 / 8 dB |
||||
|
Gain adjustment |
15 dB by 1 dB step |
||||
|
Test points |
-20 dB ± 0.75 dB |
||||
|
Current consumption |
12 V 0.8 A |
||||
|
Operating temperature range |
0°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
48.5x198x107.5 mm/1.2 kg |
