T Y P E |

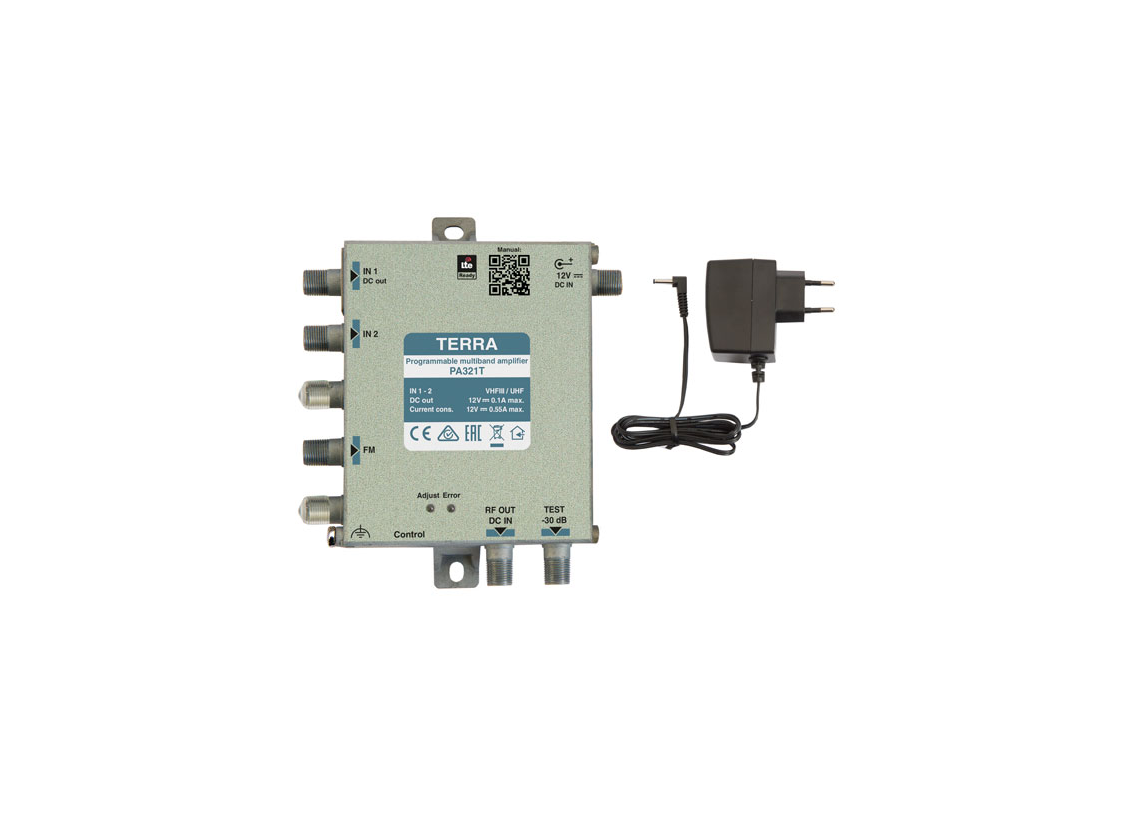

PA321TP |
||||
|
Ordering number |
00503 |
||||
|
RF inputs |
|||||
|
Frequency range |
FM |
87-108 MHz |
|||
|
2xVHFIII/UHF |
174-240 MHz / 470-694 MHz |
||||
|
RF input level |
FM |
69-89 dBµV |
|||
|
VHF/UHF |
50-100 dBµV |
||||
|
Gain |
FM |
29 dB |
|||
|
VHF/UHF |
63 dB max. |
||||
|
Noise figure |
7 dB |
||||
|
AGC |
VHF/UHF |
46 dB in each filter |
|||
|
Slope adjustment |
FM |
- |
|||
|
VHFIII/UHF pr. |
5 dB |
||||
|
Selectivity |
VHF/UHF ±1 MHz |
> 30 dB |
|||
|
FM ±20 MHz |
> 20 dB |
||||
|
LTE |
5G |
||||
|
Number of UHF channels pr. |
20 max. |
||||
|
Number of filters |
20 max. |
||||
|
RF output |
|||||
|
Output level |
FM |
106 dBµV max. |
|||
|
VHF/UHF |
113 dBµV max. (6 MUX) |
||||
|
RF output adjustment pr. |
FM |
0 ÷ -20 dB |
|||
|
VHF/UHF common |
0 ÷ -20 dB |
||||
|
VHF/UHF each channel |
± 3 dB |
||||
|
RF test |
30 dB |
||||
|
Powering*** |
|||||
|
DC feeding for external |
VHFIII/UHF1 pr. |
12 V 100 mA per input, OFF/ON |
|||
|
Supply voltage |
via 3.5/1.3 mm DC jack |
12 ± 1 V |
|||
|
via RF output |
12 ± 1 V |
||||
|
Current consumption |
12 V 450 mA**** |
||||
|
General |
|||||
|
Return loss |
> 10 dB |
||||
|
Operating temperature |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
100x147x55 mm/0.54 kg |
||||
* power inserter is sold separately
*** PA321TP is packed with external power supply SYS1381N-1212-W2E
**** without external DC load, with maximal external DC load - 0.55 A max.
pr. - software control
