T Y P E

PA420T

Ordering number

00504

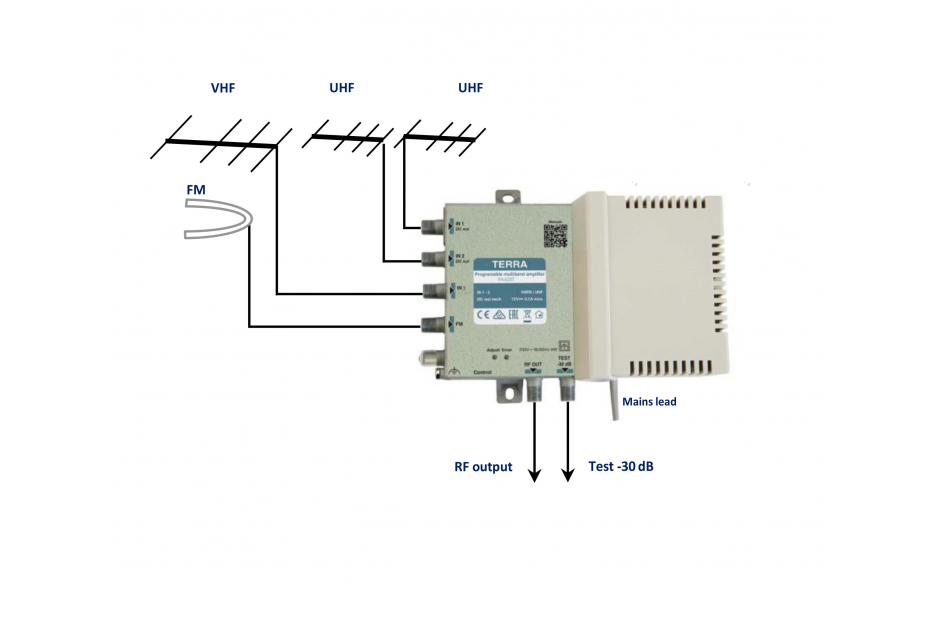

RF inputs

Frequency range

FM

87-108 MHz

2xVHFIII/UHF

174-240 MHz / 470-694 MHz

UHF

470-694 MHz

RF input level

FM

69-89 dBµV

VHF/UHF

50-100 dBµV

Gain

FM

29 dB

VHF/UHF

63 dB max.

Noise figure

7 dB

AGC

VHF/UHF

46 dB in each filter

Slope adjustment

FM

-

VHFIII/DAB/UHF    pr.

5 dB

Selectivity

VHF/UHF ±1 MHz

> 30 dB

FM ±20 MHz

> 20 dB

LTE

5G

Number of channels                                  pr.

20 max.

Number of filters

20 max.

RF output

Output level

FM

106 dBµV max.

VHF/UHF

113 dBµV max. (6 MUX)

RF output adjustment

               pr.

FM

0 ÷ -20 dB

VHF/UHF common

0 ÷ -20 dB

VHF/UHF each channel

± 3 dB

RF test

30 dB

Powering

DC feeding for external

VHFIII/UHF1        pr.

12 V  100 mA per input, OFF/ON

VHFIII/UHF2        pr.

Power consumption

230 V~  50/60 Hz  6 W**

General

Return loss

> 10 dB

Operating temperature

-20°C ÷ +50°C

Dimensions/Weight (packed)

192x147x55 mm/0.66 kg
