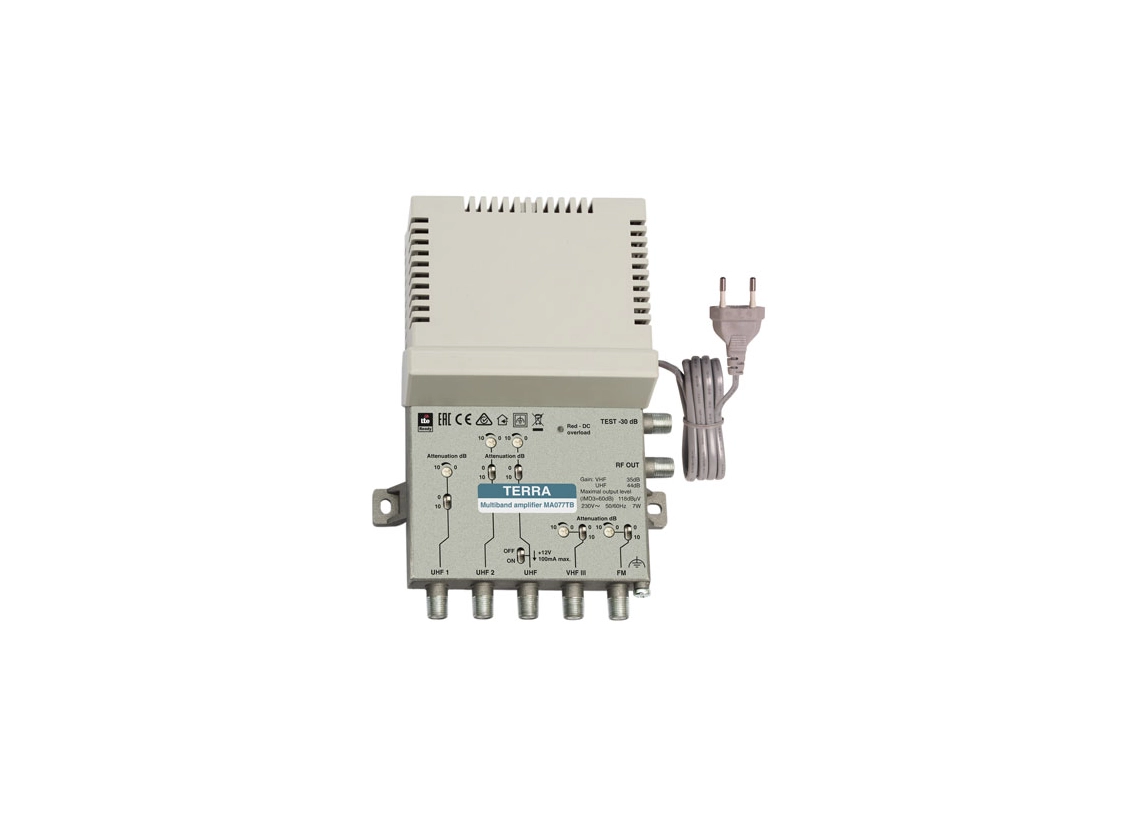

MA077TB
Multiband amplifier, LTE700 filter
5 inputs FM+B3+UHF+UHF+UHF, level DIN 121 dBµV
|
Ordering number 03541 |
Specifications
|
T Y P E |
MA077TB |
||||
|
Ordering number |
03541 |
||||
|
Gain |
FM (88-108 MHz) |
35 dB |
|||
|
VHFIII (174-230 MHz) |
35 dB |
||||
|
UHF (470-694 MHz)** |
44 dB |
||||
|
UHF1 (470-862 MHz) |
44 dB |
||||
|
UHF2 (470-678 MHz)** |
44 dB |
||||
|
Number of inputs |
5 |
||||
|
Noise figure, typical |
VHF |
< 5 dB |
|||
|
UHF |
< 4 dB |
||||
|
Maximal output level |
IMD3=60 dB (DIN45004B) 121 dBµV, IMD3=60 dB 118 dBµV |
||||
|
Gain control |
0 ÷ -20 dB |
||||
|
Return loss |
> 10 dB |
||||
|
Test point |
-30 dB |
||||
|
DC feeding for external |
12 V 100 mA max. |
||||
|
Power consumption*** |
230 V~ 50/60 Hz 5 W |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
135x180x52 mm/0.72 kg |
||||
** LTE signal suppression filter on the input
*** without external DC load; with maximal external DC load - 7 W
