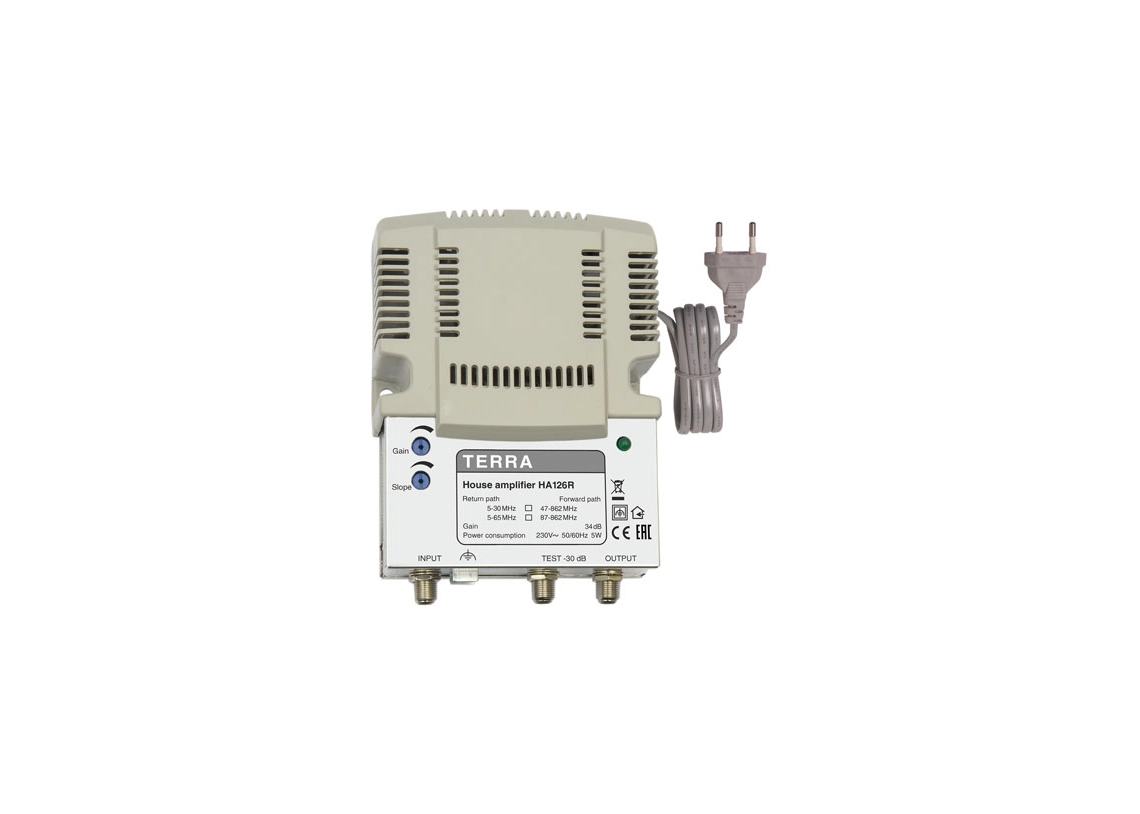

HA126R30
House amplifier, with passive
30 MHz return path
30 MHz return path
up to 862 MHz, gain 34 dB, level CTB/CSO 101 dBµV
|
Ordering number 10540 |
Specifications
|
T Y P E |
HA126R30 |
||||
|
Ordering number |
10540 |
||||
|
Frequency range |
forward path |
47-862 MHz |
|||
|
return path |
5-30 MHz |
||||
|
Gain |
34 dB |
||||
|
Flatness* |
± 0.7 dB |
||||
|
Gain adjustment |
20 dB |
||||
|
Slope adjustment, typical |
18 dB |
||||
|
Maximal output level IMD3=60 dB (DIN45004B) |
117 dBµV |
||||
|
Output level CTB, CSO (EN60728-3) |
101 dBµV |
||||
|
Input and output return loss |
≥14 dB at 40 MHz; -1.5 dB/oct., but not less 10 dB |
||||
|
Noise figure |
< 6 dB |
||||
|
Test point |
-30 dB |
||||
|
Power consumption |
230 V~ 50/60 Hz 3.5 W |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
107x148x53 mm/0.6 kg |
||||
* for amplifiers with return path measured 10 MHz after the starting frequency of forward path
