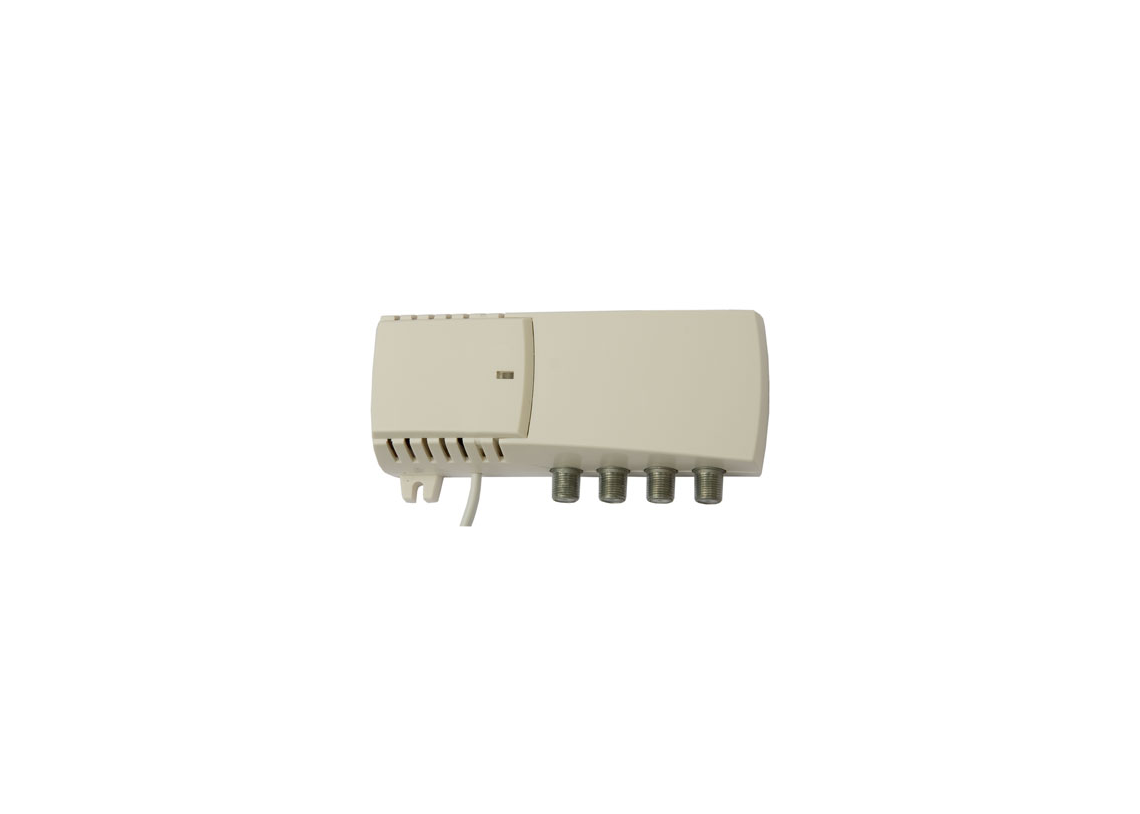

HS016
Splitband amplifier, two outputs
up to 862 MHz, gain 22 dB, level DIN 104 dBµV
|
Ordering number 02523 |
Specifications
|
T Y P E |
HS016 |
||||
|
Ordering number |
02523 |
||||
|
Frequency range |
47-300, 470-862 MHz |
||||
|
Outputs number |
2 |
||||
|
Gain (fixed slopepre-correction) |
20-22 dB, 20-22 dB |
||||
|
Gain adjustment |
VHF 0÷ −15 dB, UHF 0÷ −12 dB |
||||
|
Maximal output level IMD3=60 dB (DIN45004B) |
104 dBµV |
||||
|
Input and output return loss |
> 10 dB |
||||
|
Noise figure |
VHF < 4.5 dB, UHF <3 dB |
||||
|
Test point |
-20 dB |
||||
|
Outputs decoupling |
> 16 dB |
||||
|
Power consumption |
230 V~ 50/60 Hz 3.5 W |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
133x63x39 mm/0.36 kg |
