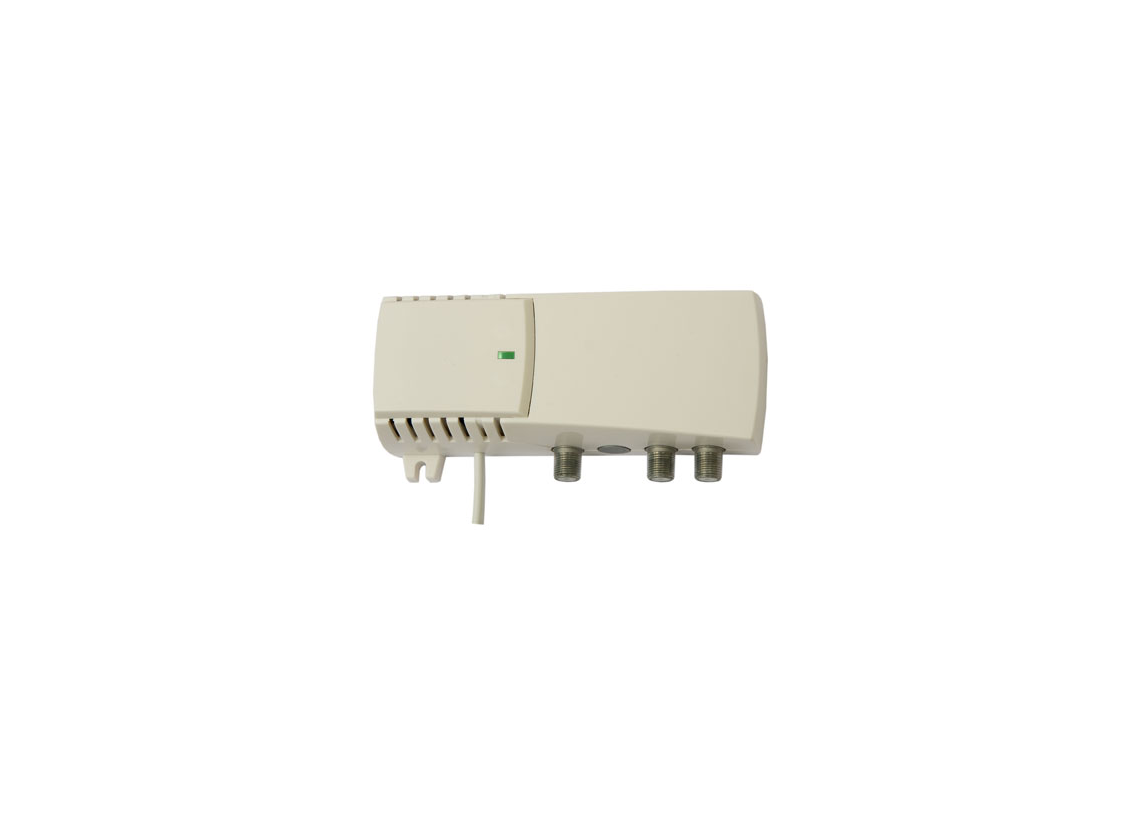

HA024
Medium power amplifier
up to 862 MHz, gain 30 dB, level CTB/CSO 97 dBµV
|
Ordering number 02520 |
Specifications
|
T Y P E |
HA024 |
||||
|
Ordering number |
02520 |
||||
|
Forward path |
|||||
|
Frequency range |
47 - 862 MHz |
||||
|
Gain, switchable* |
18-20/27-30 dB (fixed slope pre-correction) |
||||
|
Gain adjustment |
17 dB |
||||
|
Slope adjustment |
17 dB |
||||
|
Flatness* |
± 0.5 dB |
||||
|
Input and output return loss |
≥ 14 dB at 40 MHz; -1.5 dB/oct., but not less 10 dB |
||||
|
Output level CTB, CSO (EN60728-3) |
97 dBµV |
||||
|
Test point |
-30 dB bi-directional |
||||
|
Noise figure |
8.5 dB |
||||
|
General |
|||||
|
Power consumption |
230 V~ 50/60 Hz 3.5 W |
||||
|
Operating temperature range |
-20° ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
133x63x39 mm/0.36 kg |
||||
* for amplifier with return path measured 10 MHz after the starting frequency of forward path
