It is a very compact module to receive signals from up to 16 satellite TV transponders and streaming in SPTS or MPTS format.

Make the best of dSCR - one cable system by using our new streamers.
The original communication protocol based on EN50607 allows to you select any transponder from 4 SAT positions independently.
Very simple and fast setup of the streamer using TERRAs dSCR devices for SAT signals management.

Up to 1.2 Gbps output bit rate of sdi416 and up to 0.6 Gbps output bit rate of sdi482C.

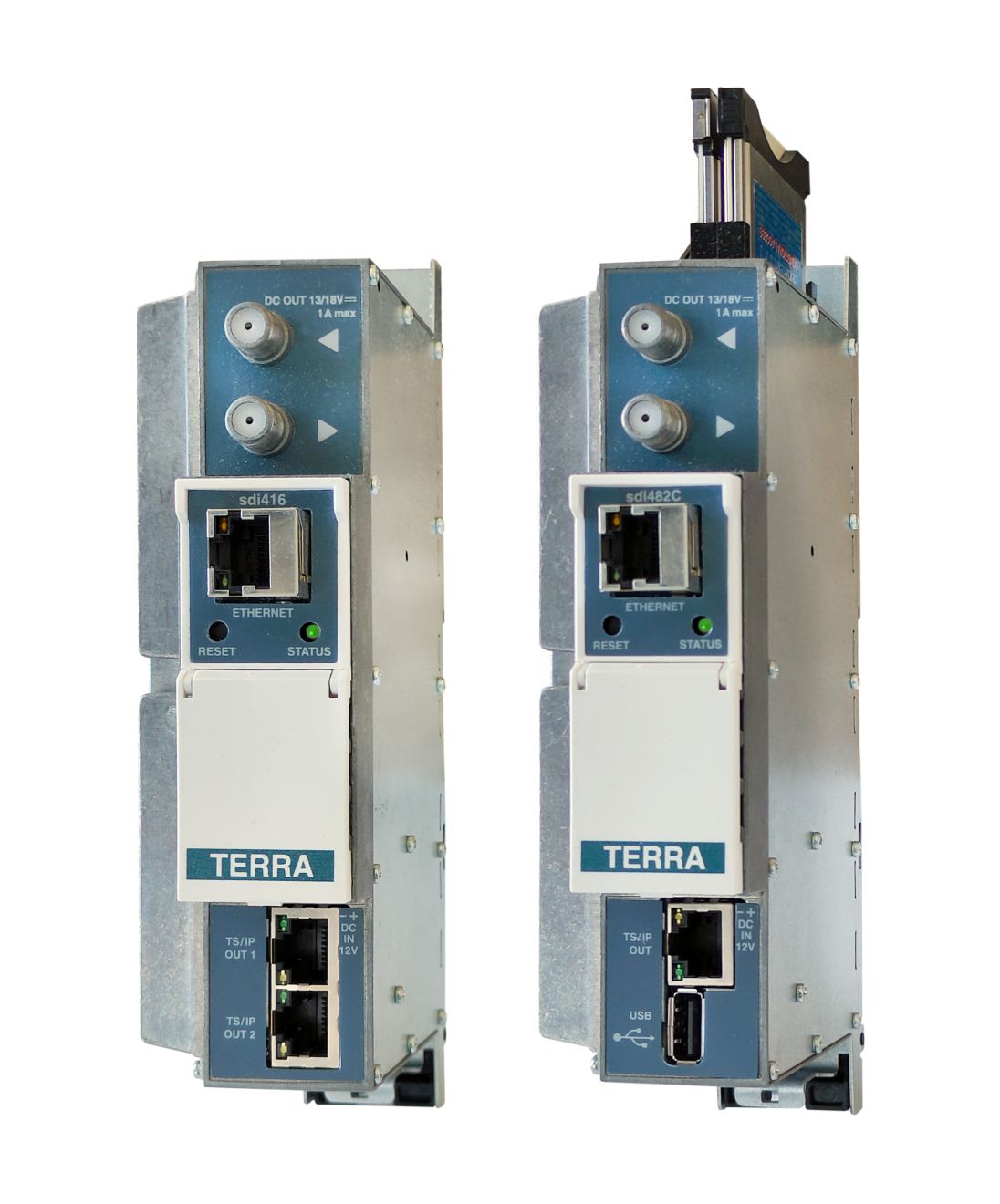

sdi416 - 16 x DVB-S/S2/S2X to IP streamer
sdi482C - 8 x DVB-S/S2/S2X to IP streamer with two CAMs

Application diagram

Installation example of SAT TV content
streaming from 4 satellite orbit positions

               SRM522 - wideband compatible dSCR multiswitch
               UP413 - 12 V power supply
               4202S-DAP - DC pass RF splitter
               PS202F - 20 V power supply
               4621-20 - DC pass attenuator 20 dB
