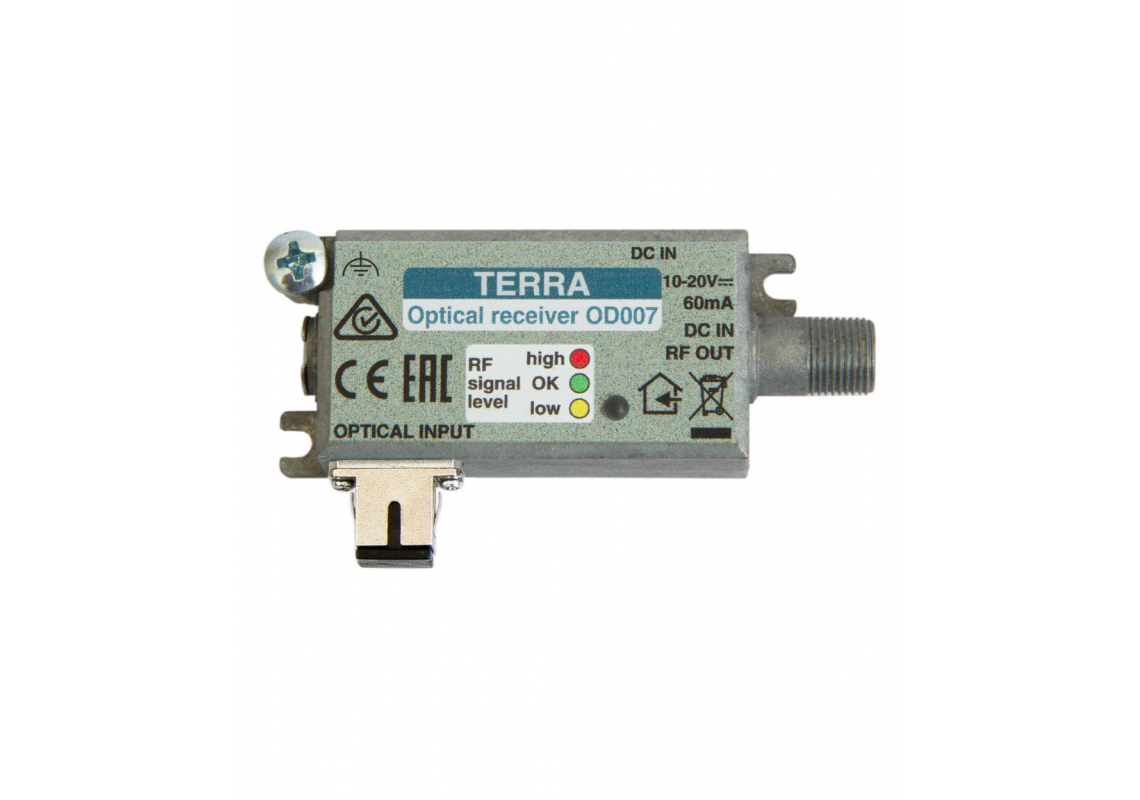

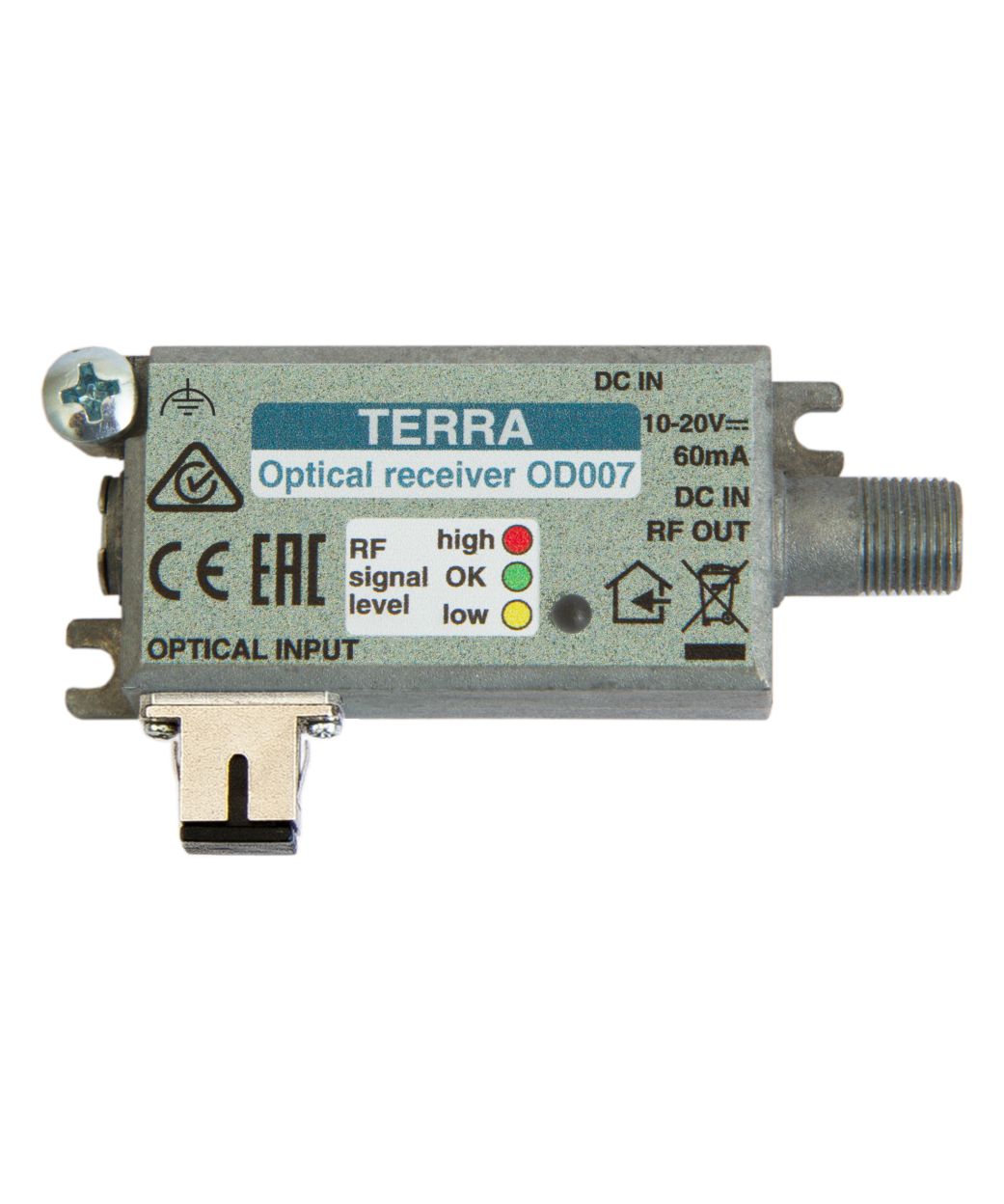

Ultra wideband 47-2400 MHz mini optical receiver OD007 with SC/APC input connector is a new recover in TERRA products range.
The OD007 receiver has automatic gain control (AGC) system for keeping RF output level constant.
AGC range of optical input power is from
0 to -15 dBm.
The receiver could be powered via RF output or via DC IN connector.

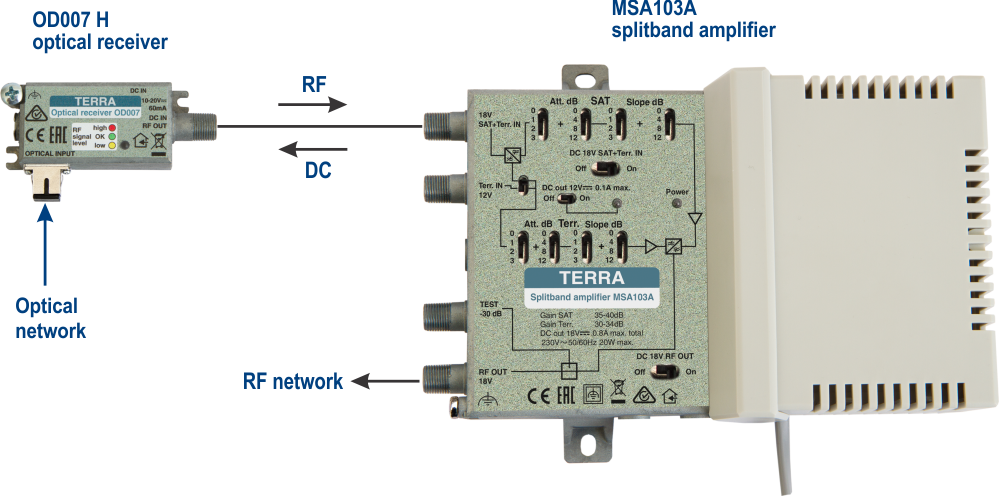

Application diagram shows using of receiver OD007 with splitband amplifier MSA103A. The receiver is powered from the amplifier.
Separated gain and slope adjustments of MSA103A allows to set independently optimal output levels for satellite and terrestrial TV carriers.

OD007 main features:
• compact optical receiver of SAT and DTT signals
• AGC based on RF signal output level
• LED indication of RF signal level
• robust die-cast housing

Application diagram

       OD007 – mini optical receiver
       MSA103A – launch splitband amplifier
