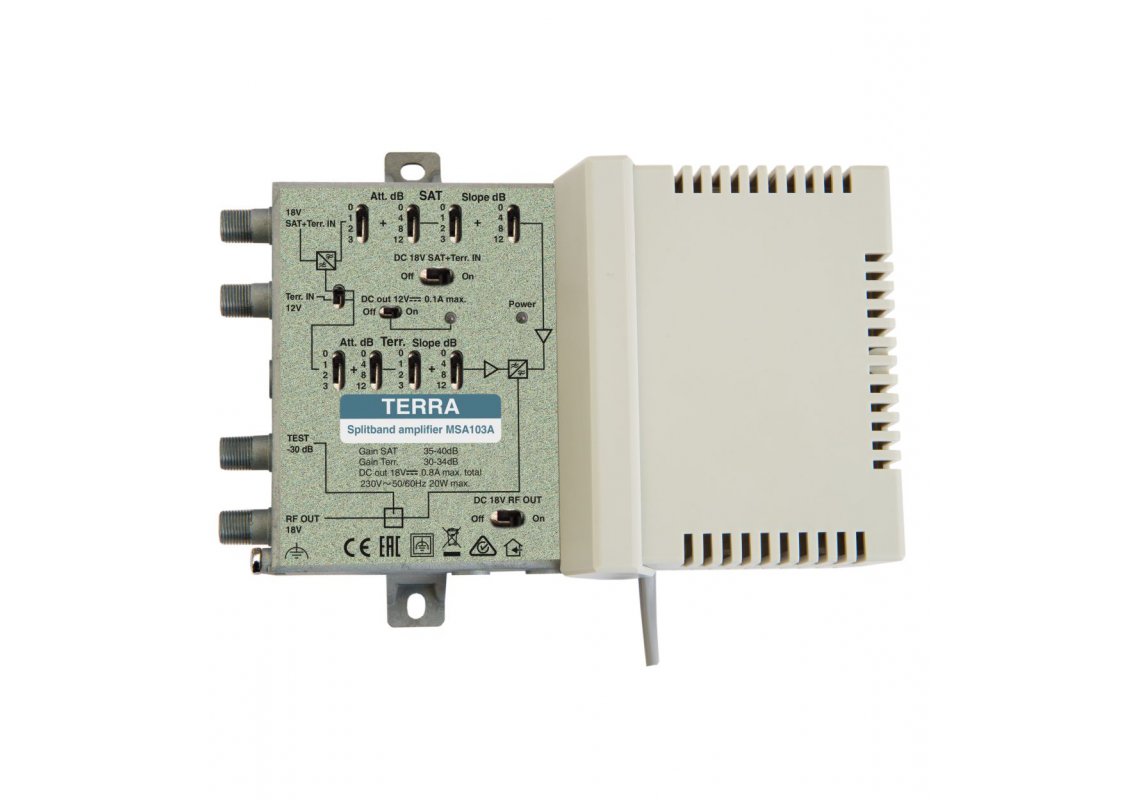

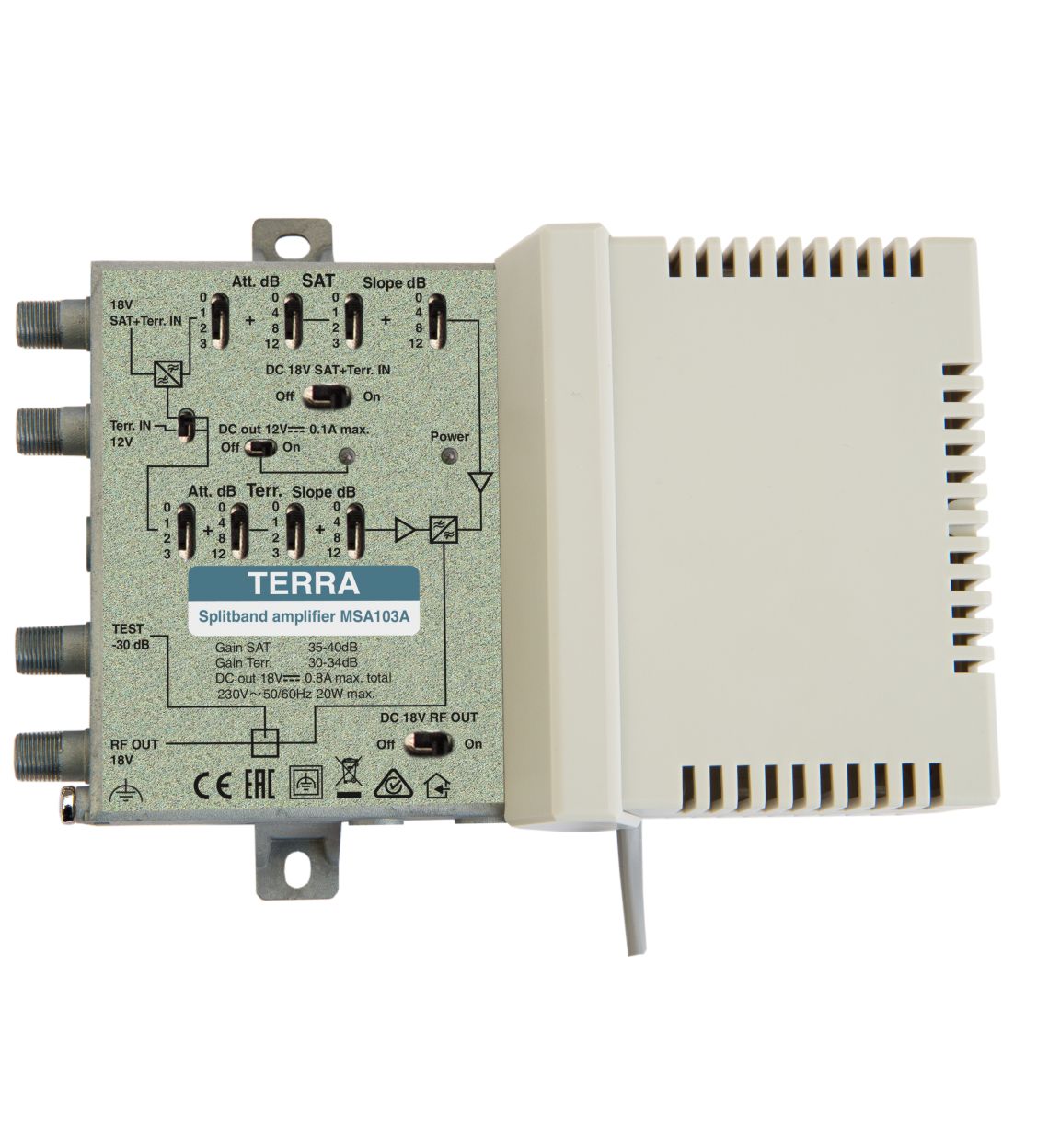

MSA103A - splitband medium power amplifier with pre-sloped frequency responses for both SAT IF and Terr.TV bands.
This amplifier can be used in two different modes:

• either as single input splitband amplifier or
• as dual input launch amplifier

Discrete gain and slope regulators are implemented in DTT and SAT IF paths.
Integrated DC voltage outputs on two RF inputs and RF output connectors can be switched ON/OFF independently. This feature gives powering possibility from built in power supply for desirable devices, for example for LNB and DTT preamplifier.
The amplifier is implemented in die-cast housing with exсellent shielding.

  Data sheet

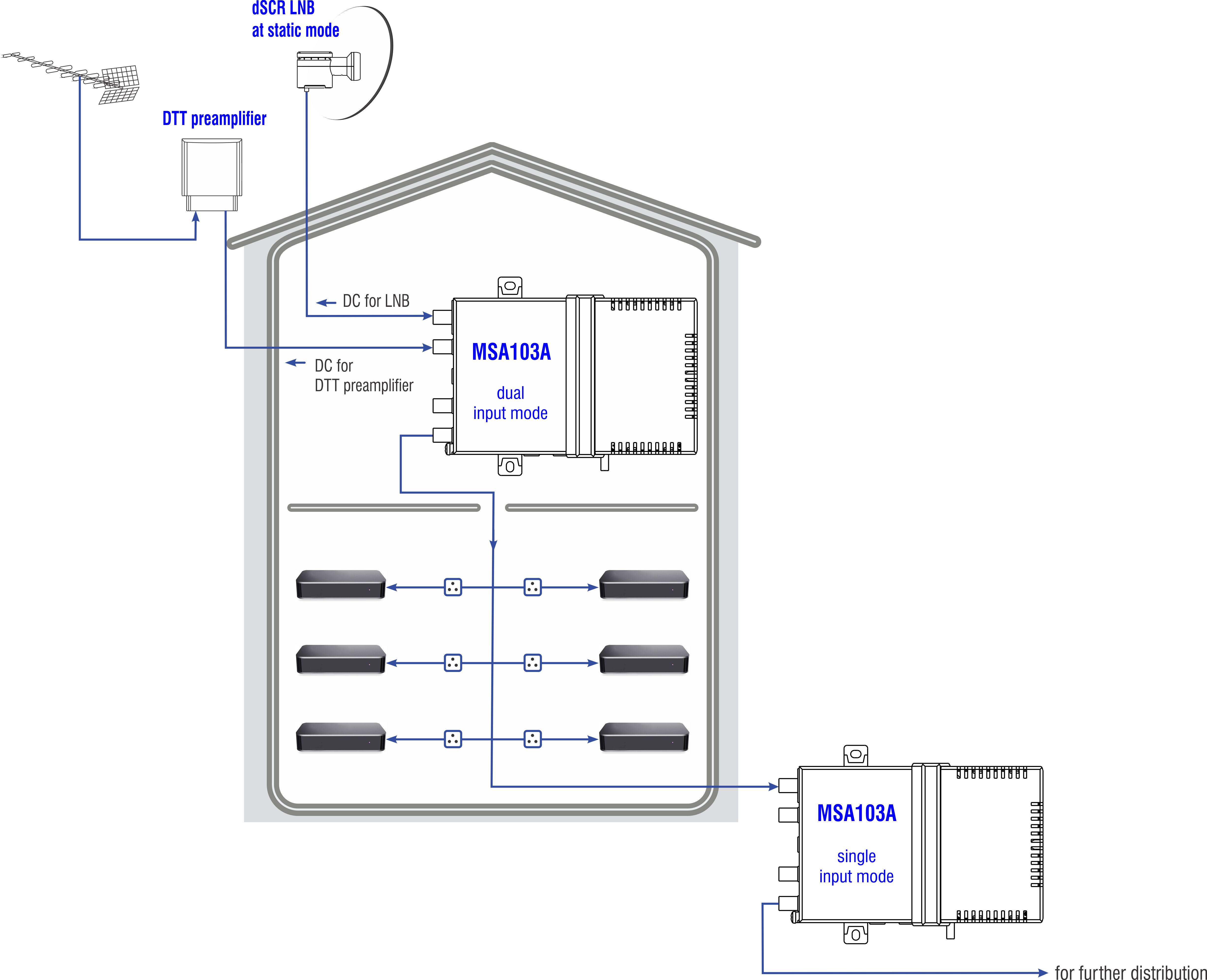

Application diagram
